CryptoHorrific

Files

We get the following files after extraction:

ls -la
total 72
drwxrwxr-x 4 kali kali  4096 May  3  2018 .
drwxrwxr-x 4 kali kali  4096 Aug 30 16:54 ..
drwxrwxr-x 4 kali kali  4096 May  3  2018 Base.lproj
-rw-rw-r-- 1 kali kali   185 May  3  2018 challenge.plist
drwxrwxr-x 2 kali kali  4096 May  3  2018 _CodeSignature
-rw-rw-r-- 1 kali kali 32352 May  3  2018 hackthebox
-rw-rw-r-- 1 kali kali  9793 May  3  2018 htb-company.png
-rw-rw-r-- 1 kali kali  1132 May  3  2018 Info.plist
-rw-rw-r-- 1 kali kali     8 May  3  2018 PkgInfo

The files are:

Directories:

• Base.lproj - Contains localized resources (strings, interface files) for the base language
• _CodeSignature - Contains digital signature files that verify the app’s authenticity and integrity

Files:

• challenge.plist - A property list file, likely containing app-specific configuration or challenge data
• hackthebox - The main executable binary of the application
• htb-company.png - An image file
• Info.plist - The app’s information property list containing metadata like bundle identifier, version, supported devices, etc.
• PkgInfo - A legacy file containing basic package type and creator information

Content of challenge.plist

cat challenge.plist
bplist00��TflagRidUtitle_XTq+CWzQS0wYzs2rJ+GNrPLP6qekDbwze6fIeRRwBK2WXHOhba7WR2OGNUFKoAvyW7njTCMlQzlwIRdJvaP2iYQ==S123_HackTheBoxIsCool
z�

This looks like an encrypted string.

Inspecting the binary

Let’s check our binary.

file hackthebox
hackthebox: Mach-O 64-bit x86_64 executable, flags:<NOUNDEFS|DYLDLINK|TWOLEVEL|PIE>

Let’s throw it on ghidra.

Ghidra

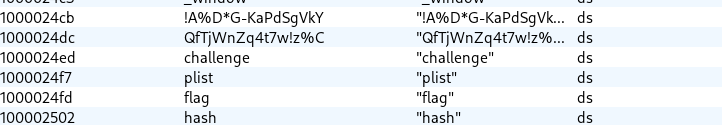

Going through the disassembled binary, entry() and CCCrypt() were the first few functions that I took a look at. Afterwards I immediately went through the defined strings. Near challenge plist I saw some interesting strings:

                             //
                             // __cstring
                             // __TEXT
                             // ram:1000024cb-ram:10000257b
                             //
                             s_!A%D*G-KaPdSgVkY_1000024cb                    XREF[1]:     1000030a8(*)
       1000024cb 21 41 25        ds         "!A%D*G-KaPdSgVkY"
                 44 2a 47
                 2d 4b 61
                             s_QfTjWnZq4t7w!z%C_1000024dc                    XREF[1]:     1000030c8(*)
       1000024dc 51 66 54        ds         "QfTjWnZq4t7w!z%C"
                 6a 57 6e
                 5a 71 34
                             s_challenge_1000024ed                           XREF[1]:     1000030e8(*)
       1000024ed 63 68 61        ds         "challenge"
                 6c 6c 65
                 6e 67 65 00
                             s_plist_1000024f7                               XREF[1]:     100003108(*)
       1000024f7 70 6c 69        ds         "plist"
                 73 74 00
                             s_flag_1000024fd                                XREF[1]:     100003128(*)
       1000024fd 66 6c 61        ds         "flag"
                 67 00
                             s_hash_100002502                                XREF[2]:     100003478(*), 100003d30(*)
       100002502 68 61 73        ds         "hash"
                 68 00

Clicking on the XREF took us to a refernce of the function ` XREF[1]: viewDidLoad:1000010b2() `.

Clicking on the above XREF again took us to this code:

/* Function Stack Size: 0x10 bytes */

void ViewController::viewDidLoad(ID param_1,SEL param_2)

{
  undefined8 uVar1;
  undefined8 uVar2;
  undefined8 uVar3;
  undefined8 uVar4;
  undefined8 uVar5;
  undefined8 uVar6;
  undefined8 uVar7;
  undefined8 uVar8;
  ID IVar9;
  ID IVar10;
  ID local_28;
  class_t *local_20;
  SEL local_18;
  ID local_10;

  local_20 = &objc::class_t::ViewController;
  local_28 = param_1;
  local_18 = param_2;
  local_10 = param_1;
  _objc_msgSendSuper2(&local_28,"viewDidLoad");
  uVar1 = *(undefined8 *)(local_10 + l);
  uVar2 = _objc_msgSend(&_OBJC_CLASS_$_NSString,"alloc");
  IVar10 = local_10;
  uVar3 = _objc_msgSend(&_OBJC_CLASS_$_NSData,"alloc");
  uVar4 = _objc_msgSend(&_OBJC_CLASS_$_NSArray,"alloc");
  uVar5 = _objc_msgSend(&_OBJC_CLASS_$_NSBundle,"mainBundle");
  uVar5 = _objc_retainAutoreleasedReturnValue(uVar5);
  uVar6 = _objc_msgSend(uVar5,"pathForResource:ofType:",&cf_challenge,&cf_plist);
  uVar6 = _objc_retainAutoreleasedReturnValue(uVar6);
  uVar4 = _objc_msgSend(uVar4,"initWithContentsOfFile:",uVar6);
  uVar7 = _objc_msgSend(uVar4,"objectAtIndex:",0);
  uVar7 = _objc_retainAutoreleasedReturnValue(uVar7);
  uVar8 = _objc_msgSend(uVar7,"objectForKey:",&cf_flag);
  uVar8 = _objc_retainAutoreleasedReturnValue(uVar8);
  IVar9 = _objc_msgSend(uVar3,"initWithBase64EncodedString:options:",uVar8,0);
  IVar10 = SecretManager:key:iv:data:
                     (IVar10,(SEL)"SecretManager:key:iv:data:",1,0x100003098,0x1000030b8,IVar9);
  uVar3 = _objc_retainAutoreleasedReturnValue(IVar10);
  uVar2 = _objc_msgSend(uVar2,"initWithData:encoding:",uVar3,4);
  _objc_msgSend(uVar1,"setText:",uVar2);
  _objc_release(uVar2);
  _objc_release(uVar3);
  _objc_release(IVar9);
  _objc_release(uVar8);
  _objc_release(uVar7);
  _objc_release(uVar4);
  _objc_release(uVar6);
  _objc_release(uVar5);
  return;
}

The algorithm:

• Read plist: Loads challenge.plist and extracts the flag value
• Base64 decode: Converts the flag string to binary data
• Decrypt: Calls SecretManager:key:iv:data: with:
  • key: 0x100003098 (which points to “!A%D*G-KaPdSgVkY”)
  • iv: 0x1000030b8 (which points to “QfTjWnZq4t7w!z%C”)
  • data: The Base64-decoded flag
• Convert result: Turns decrypted data back into a string

The encrypted data:

Tq+CWzQS0wYzs2rJ+GNrPLP6qekDbwze6fIeRRwBK2WXHOhba7WR2OGNUFKoAvyW7njTCMlQzlwIRdJvaP2iYQ==

To confirm which encryption is being used we can go through the classes, ViewController:

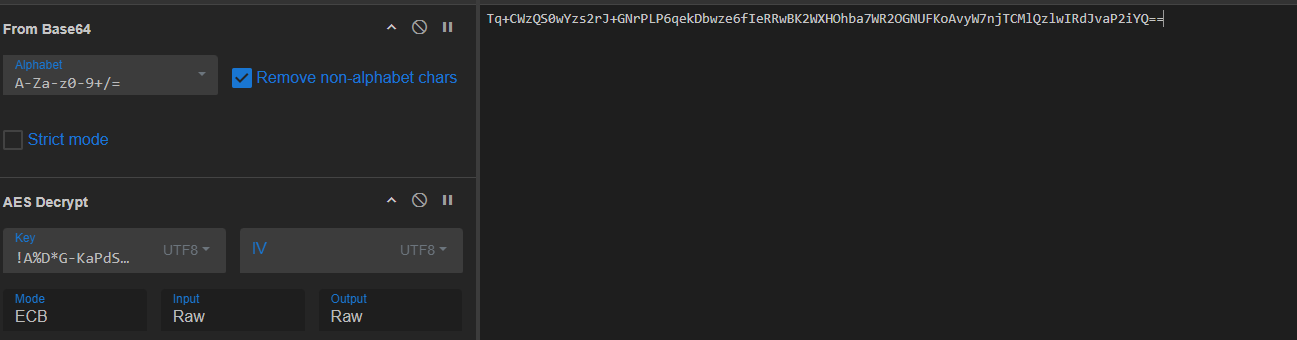

We can confirm the algorithm is: AES-128-ECB. From CyberChef:

Output:

HTB{*SoC00l_H4ckTh3****

---
